Keel Steel

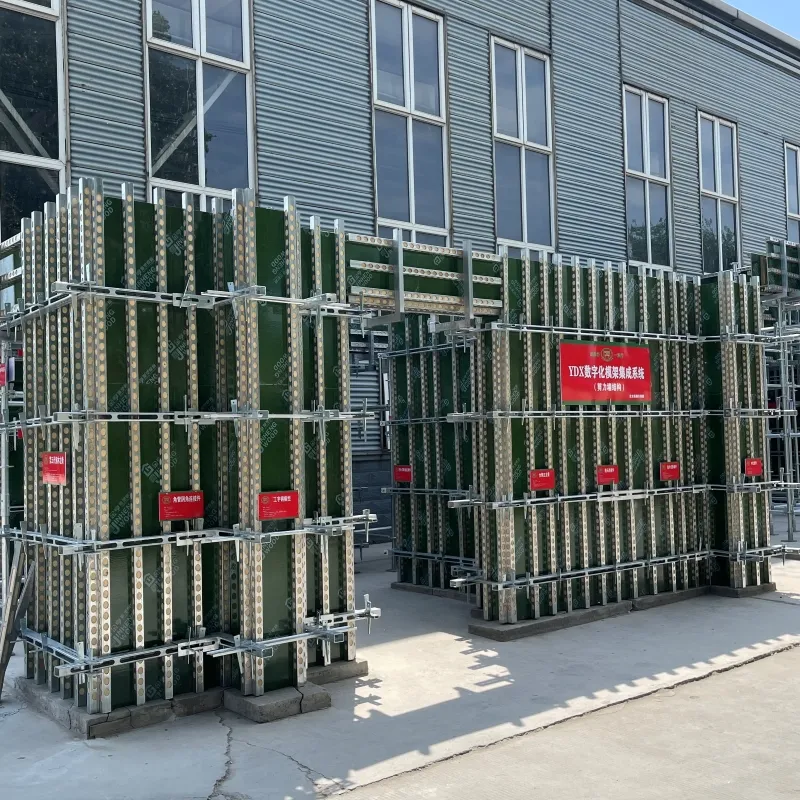

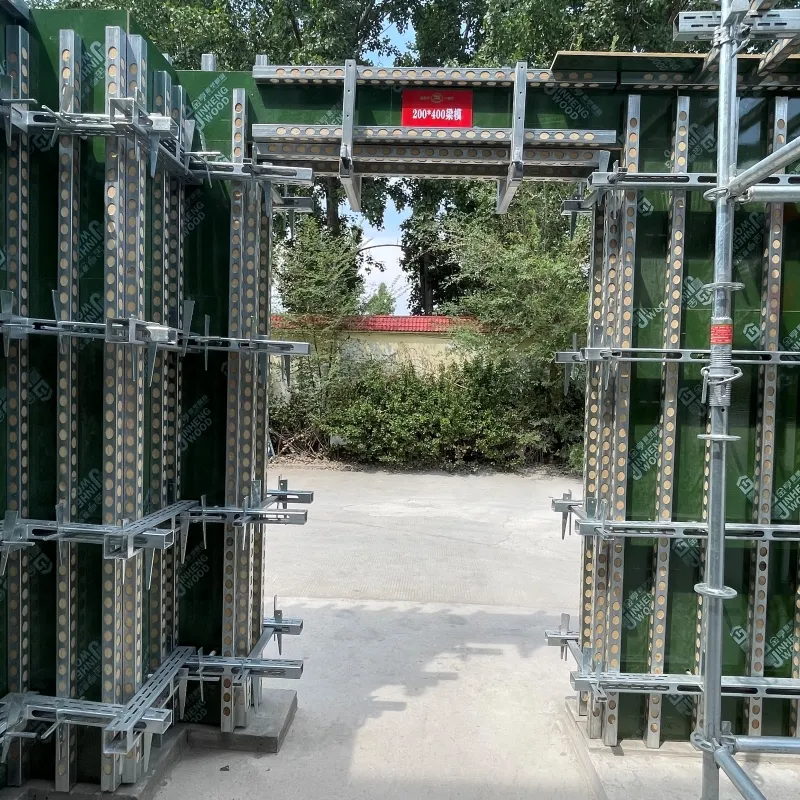

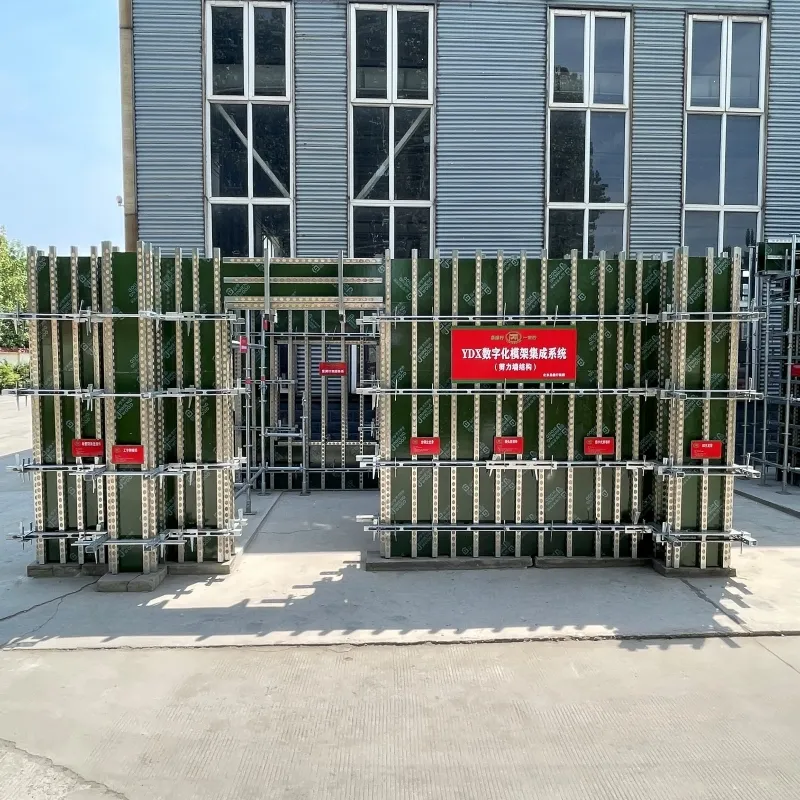

The construction process of the keel steel is a formwork system composed of wood formwork/plastic formwork + keel steel and its matching, corner back, straight pipe corner back, lock back, pin and gasket. The system is rigid, stable and reliable. Light weight, small size, easy to handle, convenient transportation; The components are standardized, modular, simple accessories, strong applicability, uniform specifications, fast installation; Many times of turnover, recycling, recycling value is high. YDX keel steel (horizontal) reinforcement system: instead of the traditional reinforcement application of double diameter 48 round pipe construction method, specifications and size standards, light, simple and practical.YDX keel steel specifications adopt 50*70mm, wall thickness 3.0mm rectangular single tube design, basically meet the use of various shear wall lengths, no connection, weight 3.94kg per meter, light weight, light use, easy operation, full hot galvanized products, durable, turnover can reach 1000 times.
